Cast Iron & Steel Gate Manufacturer in China

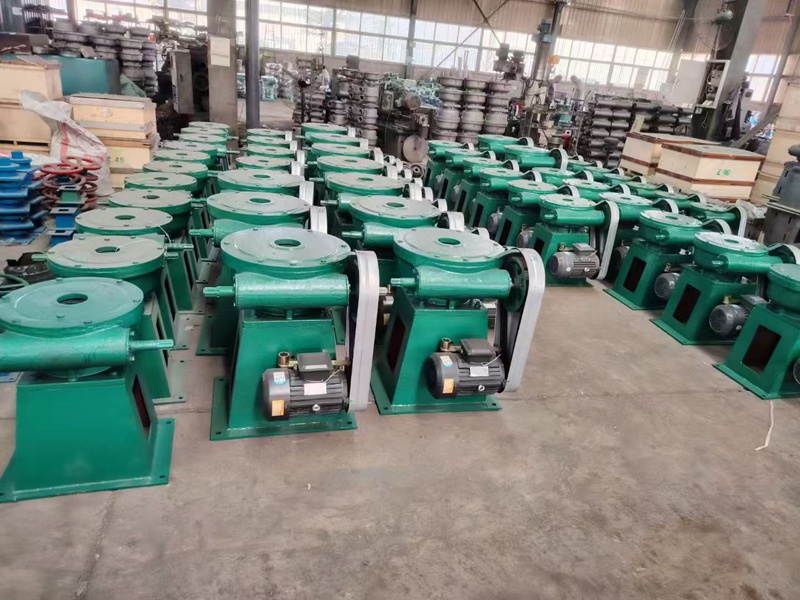

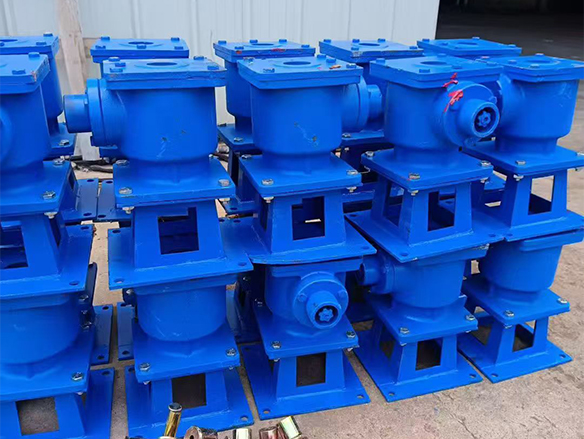

We manufacture cast iron gates, steel gates, hydraulic steel dams, gate hoists, trash rakes, trash racks, flap valves, conveyors, and related water-control accessories. Products are used in irrigation, drainage, hydropower, rivers, reservoirs, wastewater, and municipal projects. Non-standard sizes can be fabricated from drawings.

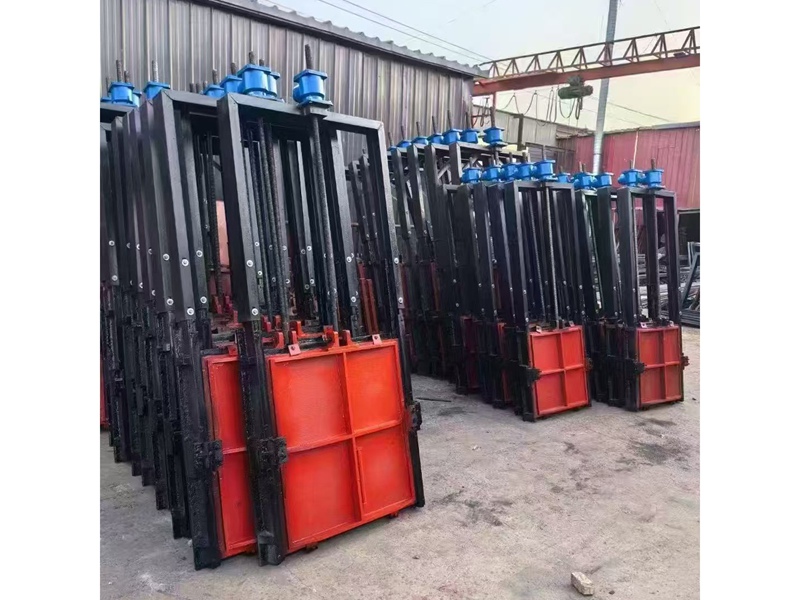

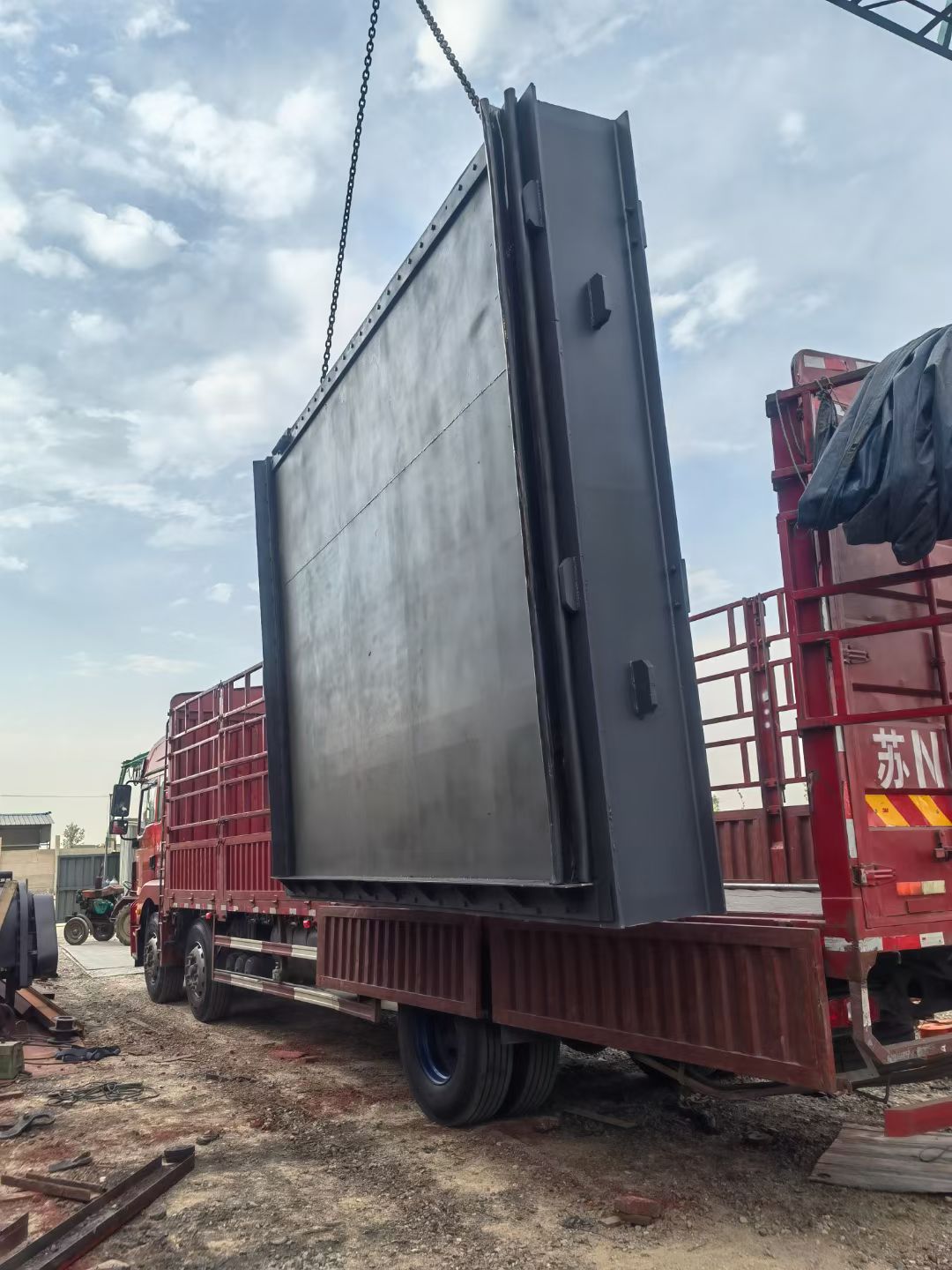

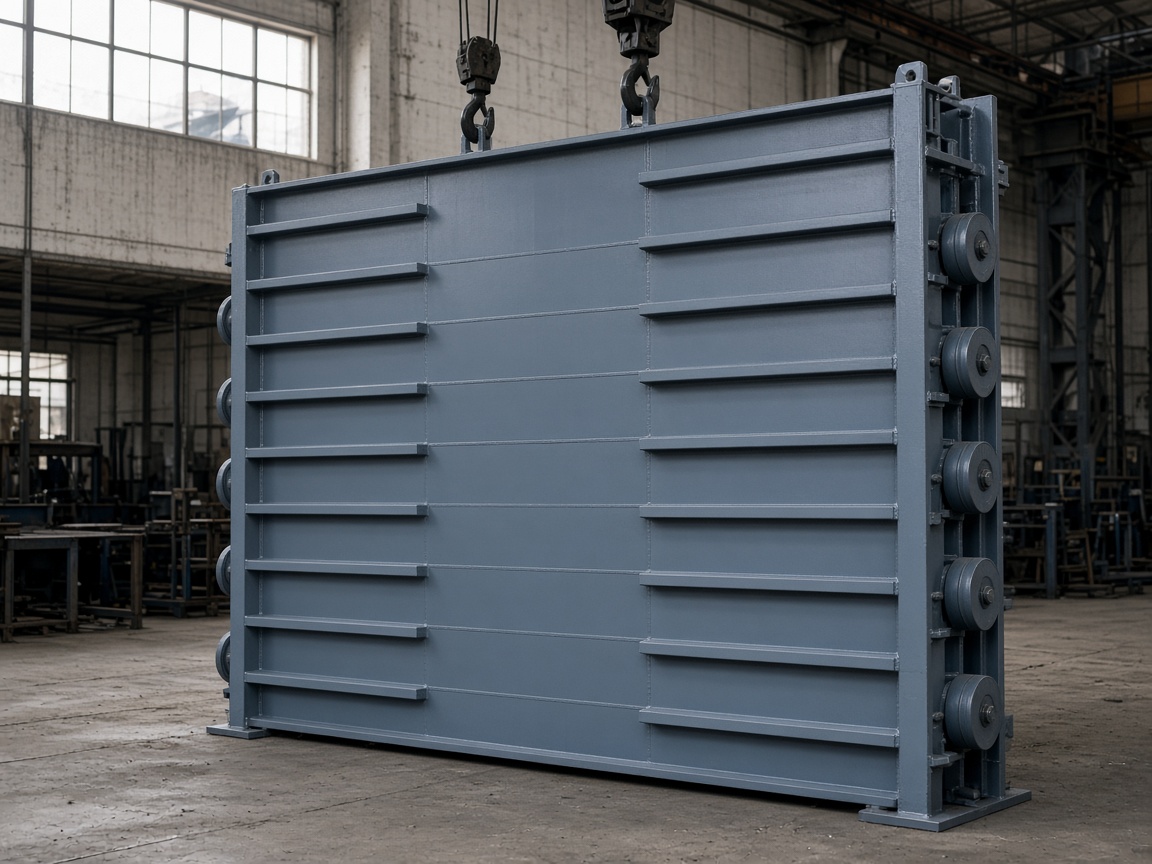

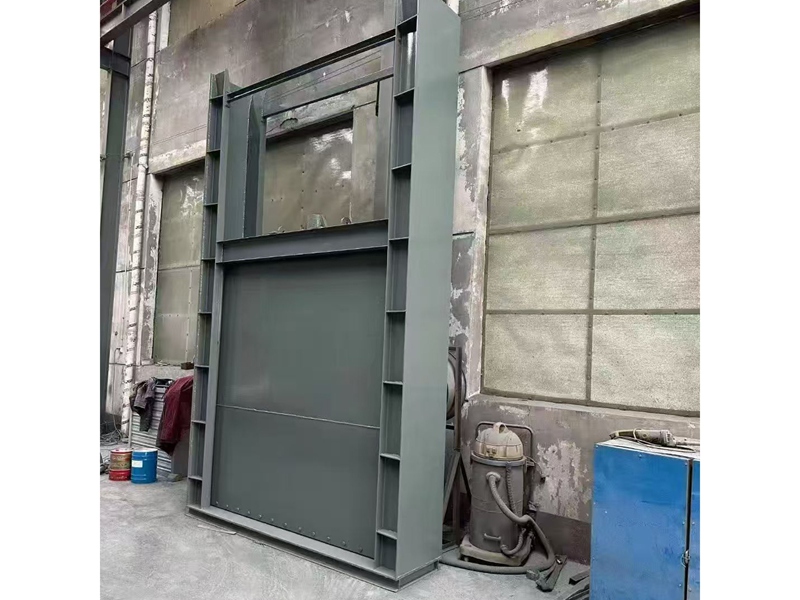

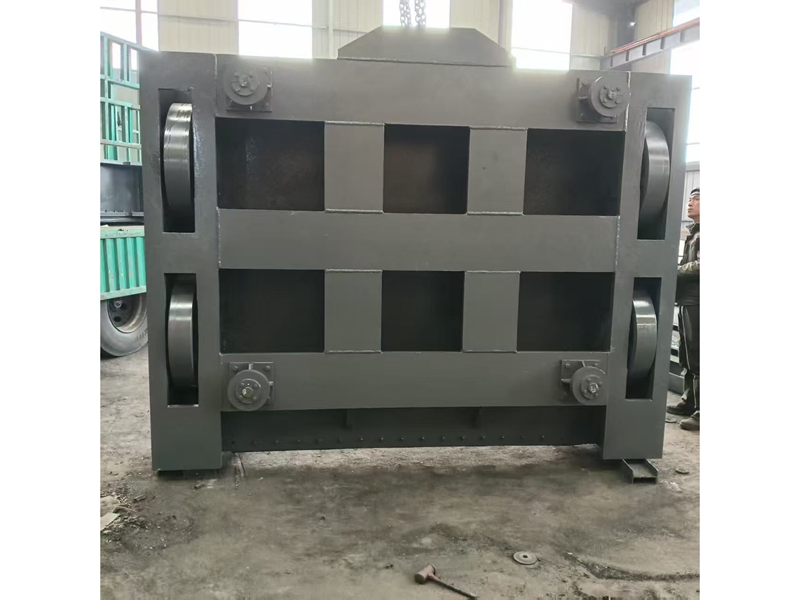

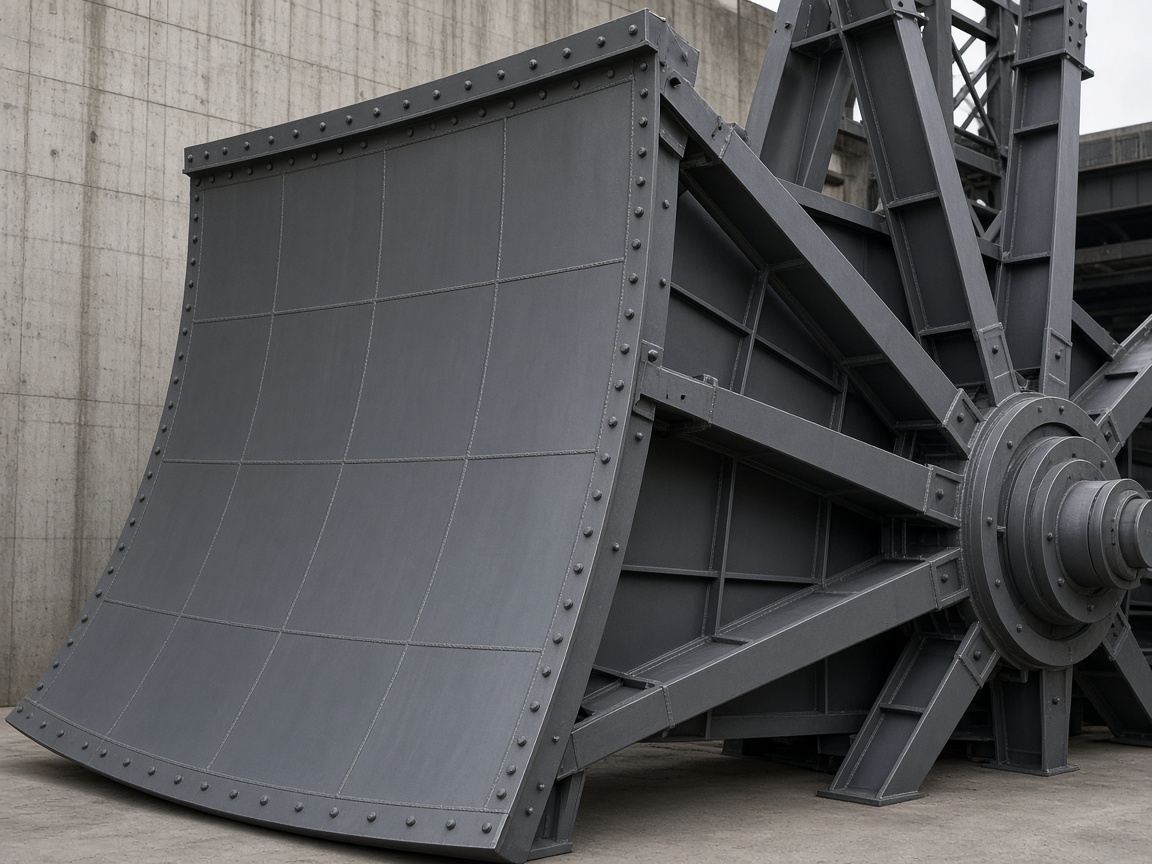

A cast iron sluice gate, also called a slide gate or penstock, uses a thick cast leaf and a rigid sealing face, so it suits many small-to-medium openings and holds up in humid or sewage-related water when correctly rated. A steel sluice gate uses stiffened steel plate, so it suits larger openings, higher water heads, and custom panel designs, with higher tensile strength and controllable deflection. Select by clear opening, design water head, and water chemistry, not by price alone.

Yes. This site is the overseas Export / International Sales channel for B2B buyers. We provide selection consulting, non-standard customization from project drawings, ocean export packing, commercial documents, and remote installation guidance. Main export regions include Africa, Southeast Asia, the Middle East, and Central Asia.

Send the product type, clear opening size, design water head, quantity, material preference, destination country or port, and drawings if available. Engineered water equipment is quoted on request after technical matching—there is no single fixed online price for custom gates and hoists.

The manufacturing base is in Xinhe County, Xingtai City, Hebei Province, China, with convenient access to national highways and expressways for domestic delivery and export logistics. The plant covers about 20,000 square meters.

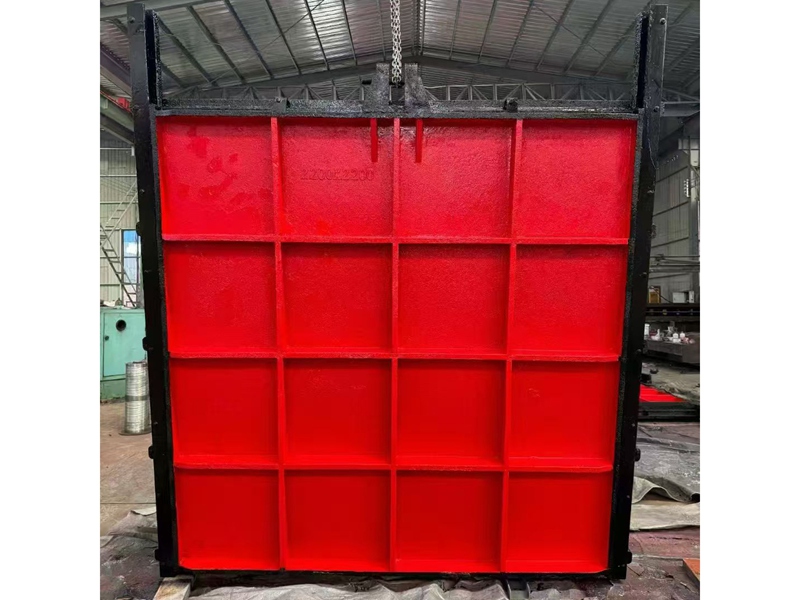

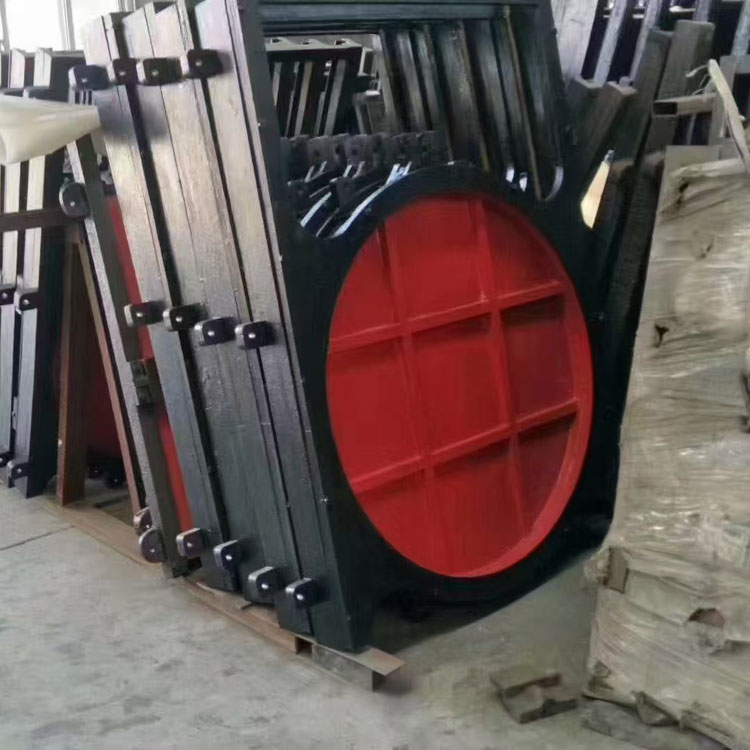

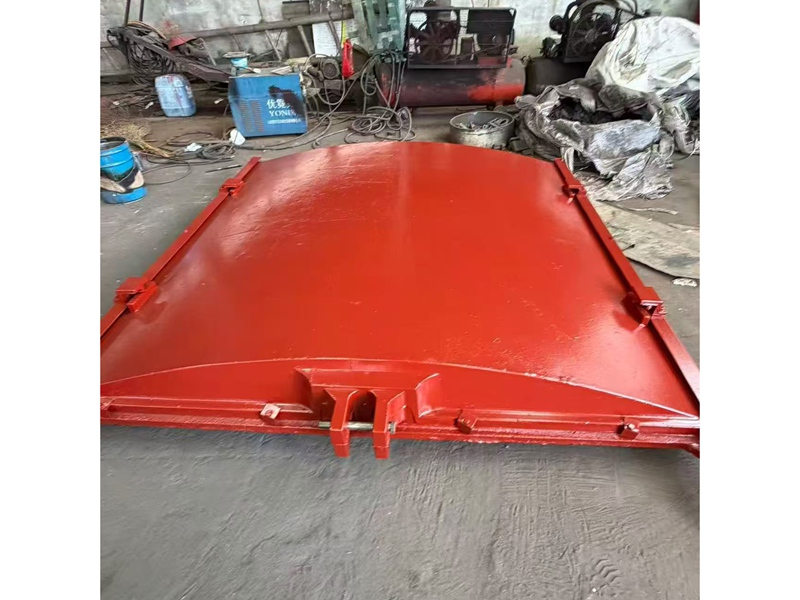

A cast iron sluice gate, also called a slide gate or penstock, is supplied by clear opening, design water head, and seal type, with the size taken from the drawing. The usual seal is a copper-alloy or bronze hard seat; a rubber seal is fitted when the drawing requires it. For water-supply and drainage gates accepted under CJ/T 3006-1992, leakage at the maximum forward working head is not greater than 1.25 L/(min·m) of seal length, and at the maximum reverse working head not greater than 2.5 L/(min·m). That standard's basic ratings are a maximum forward working head of 98 kPa (about 10 m) and a maximum reverse working head of 29 kPa (about 3 m). Export buyers often cite AWWA C560 for cast-iron slide gates. If the purchase order names AWWA C560, leakage is checked against that clause. This is not an AWWA product-listing claim. A non-standard rubber-seal design does not automatically use the 1.25 / 2.5 L/(min·m) limits; acceptance follows the contract.

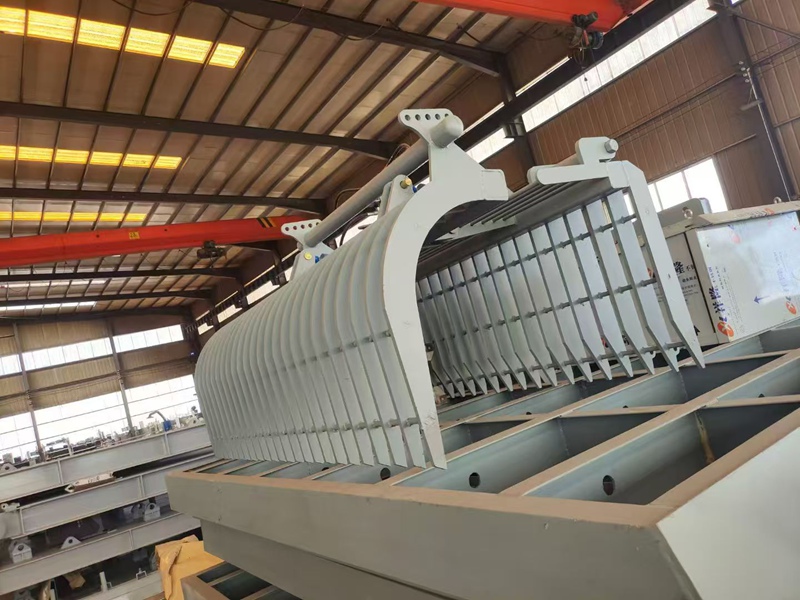

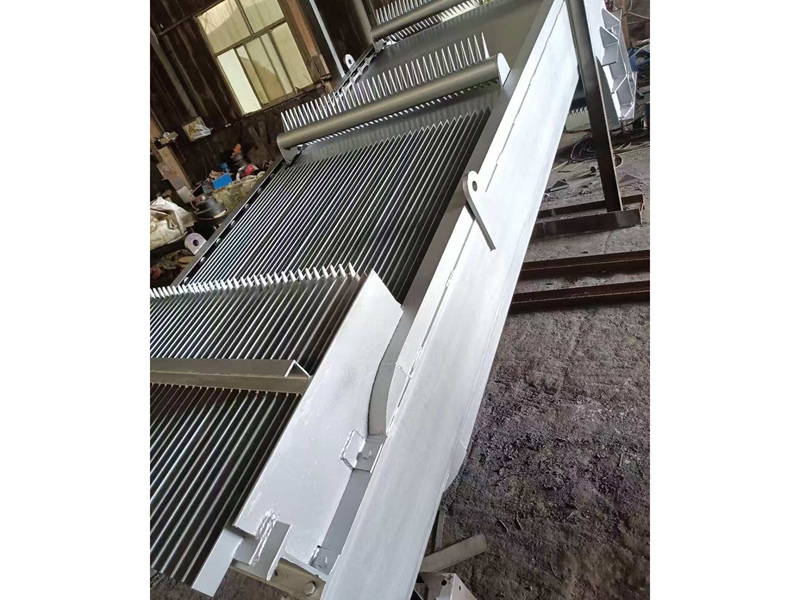

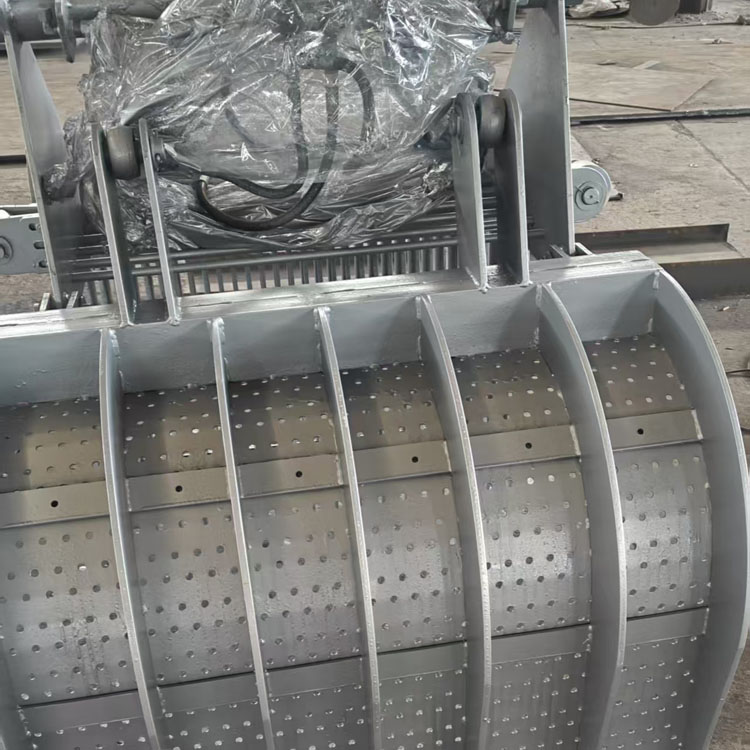

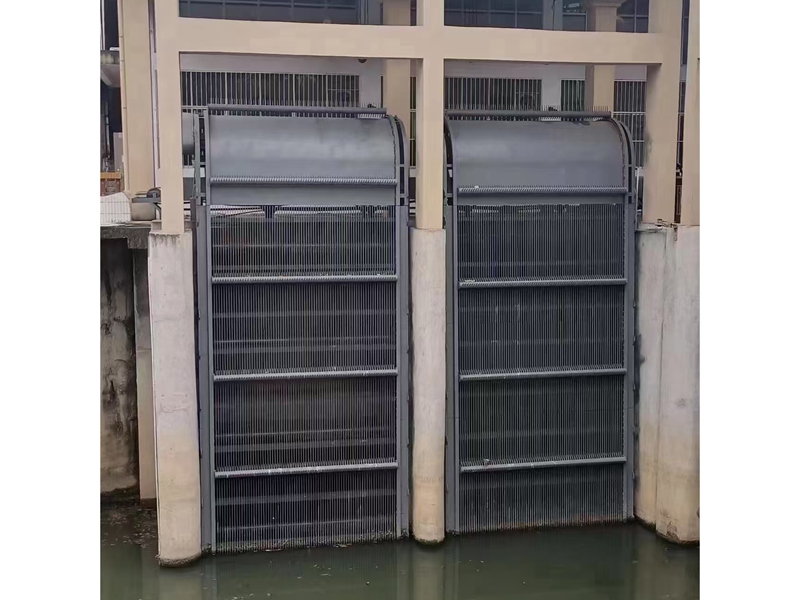

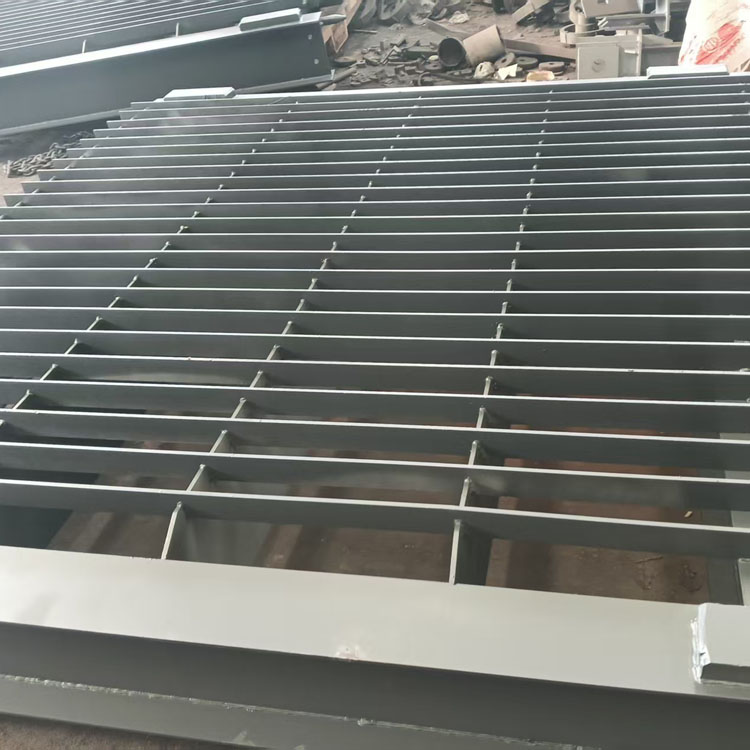

Yes. Mobile grab trash rakes, rotary bar-screen cleaners, stainless steel coarse bar screens, and related intake equipment can be supplied alone or as part of a package with gates and hoists for pump stations and canal intakes.

Contact Hebei Dequn Water Conservancy Machinery Co., Ltd. (also known as Hebei Dequn Machinery Co., Ltd., formerly Xingtai Huantian) through Export / International Sales: Tel +86 13903193904, Email sales@dequnwater.com. Please include destination country and key dimensions for faster technical reply.
